NumberField

The <NumberField> component used for capturing numerical input from the user in a form or similar input context. This allows users to input numbers including integers, decimals, and as well as percentages. The component also offers steppers which provides lower interaction costs.

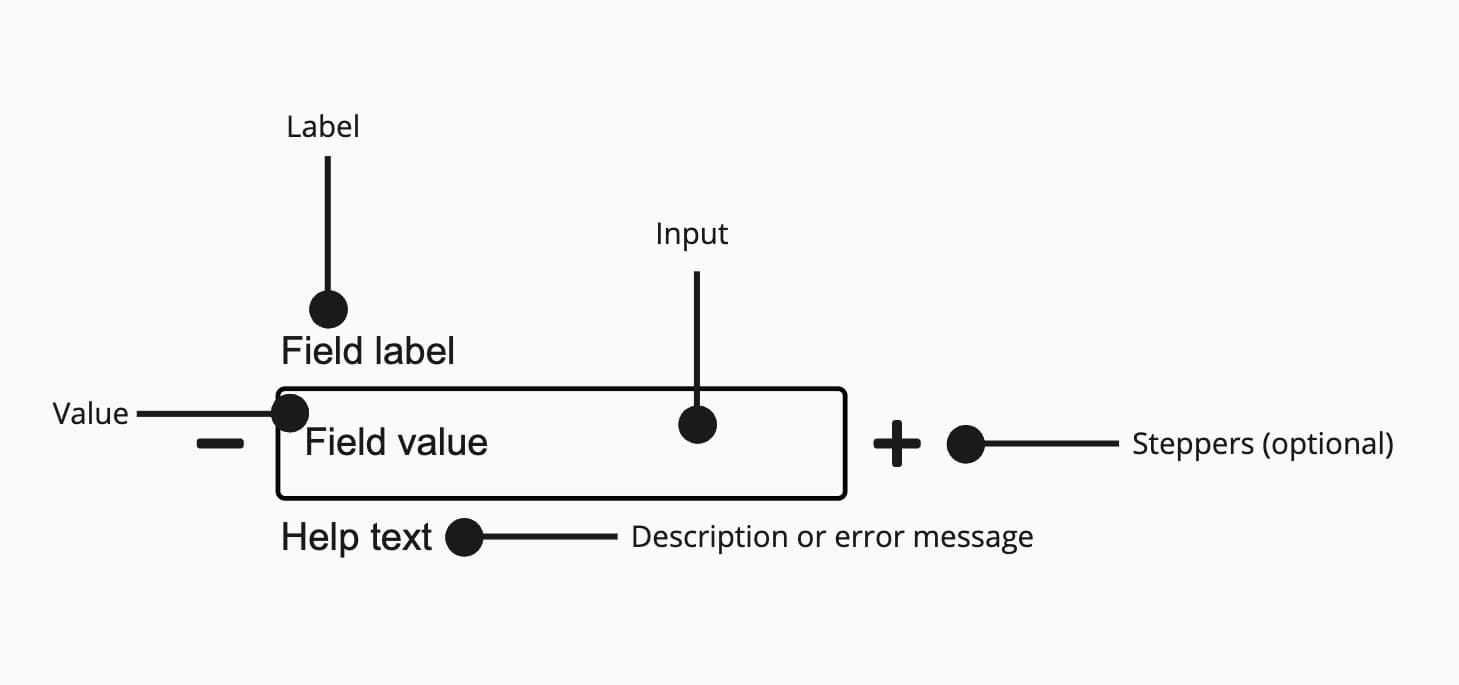

Anatomy

It consists of a label, an input field and a help text. Optional you can also show a help text and stepper buttons for increasing/decreasing values.

Appearance

The appearance of a component can be customized using the variant and size props. These props adjust the visual style and dimensions of the component, available values are based on the active theme.

Usage

<NumberField> is an input field that accepts only numeric input.

Use Steppers

The stepper buttons make it easier and faster for people to make small numeric changes. It allows people to increase or decrease a number with a single button press, or by typing the number in the field.

Also keep in mind using the width property is essential to provide a good user experience. So each input field shouldn't be larger than the expected content. For example when using stepper buttons it is better to have shorter fields, so that the user can easier reach these buttons (lower interaction costs).

import { Headline, NumberField, Stack, Text } from '@marigold/components';export default () => (  <Stack space={5}>    <div>      <Headline level={3}>Confirm Guests</Headline>      <Text>Who's going on your trip?</Text>    </div>    <NumberField      defaultValue={3}      minValue={0}      maxValue={20}      width="1/6"      label="Adults"    />    <NumberField      defaultValue={0}      minValue={0}      maxValue={20}      width="1/6"      label="Children"    />    <NumberField      defaultValue={0}      minValue={0}      maxValue={20}      width="1/6"      label="Infants"    />  </Stack>);

Use Format Options

With <NumberField> you can use Intl.NumberFormatOptions which comes in handy to format the numbers in a certain format, e.g. percent,unit, decimal and currency.

For a full list of supported options, see corresponding MDN Docs. A full list of suported units can be seen here.

import { NumberField, Stack } from '@marigold/components';export default () => (  <Stack space={4}>    <NumberField      label="Amount"      defaultValue={19.99}      formatOptions={{        style: 'currency',        currency: 'USD',      }}    />    <NumberField      label="Decimals"      formatOptions={{        signDisplay: 'exceptZero',        minimumFractionDigits: 1,        maximumFractionDigits: 2,      }}      step={0.1}      defaultValue={0}    />    <NumberField      label="Length"      defaultValue={150}      minValue={0}      formatOptions={{        style: 'unit',        unit: 'centimeter',        unitDisplay: 'short',      }}    />    <NumberField      label="Percentage"      defaultValue={0.42}      formatOptions={{        style: 'percent',      }}    />  </Stack>);

Label

In general label should be short and precise about what is expected from the user. Avoid unnecessary instructional verbs (doing words) in your labels and hints because it's already implied by the input field. Avoid placeholder text in most cases, as there's no need for it (more about it in the next section).

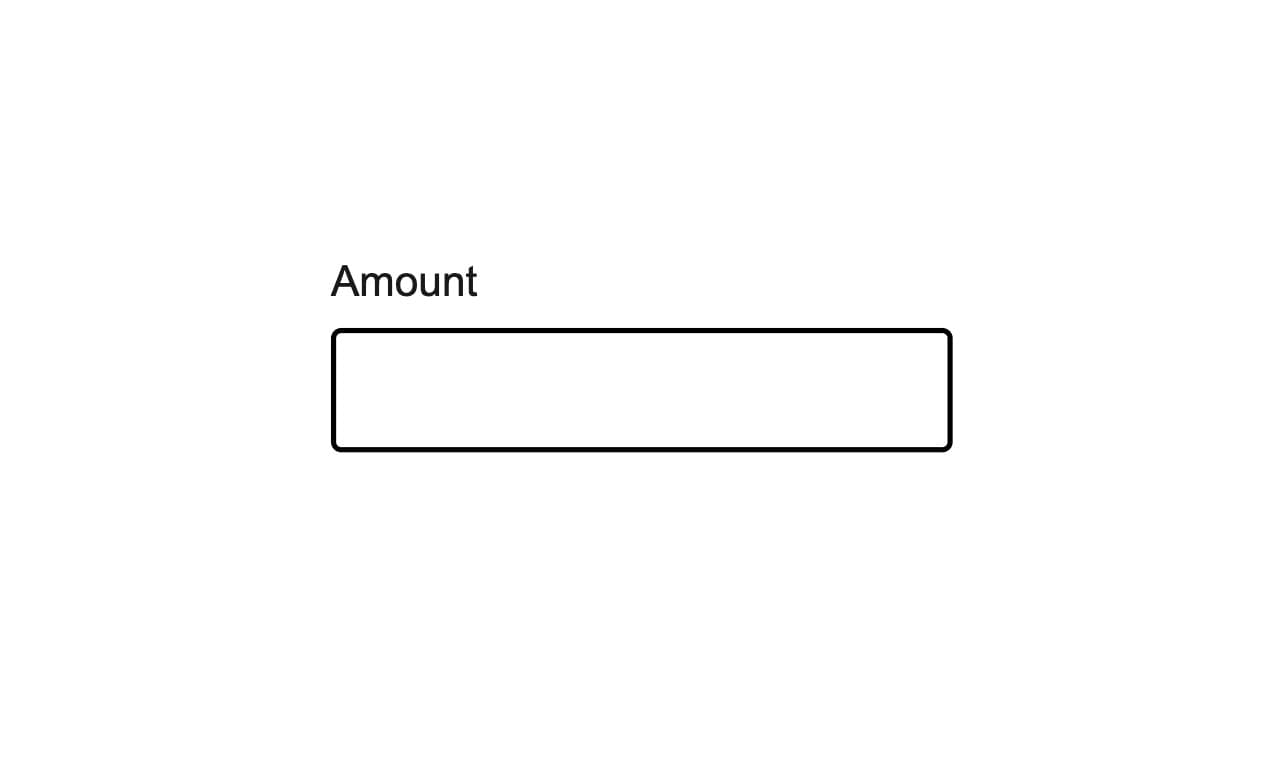

Do

Use short labels.

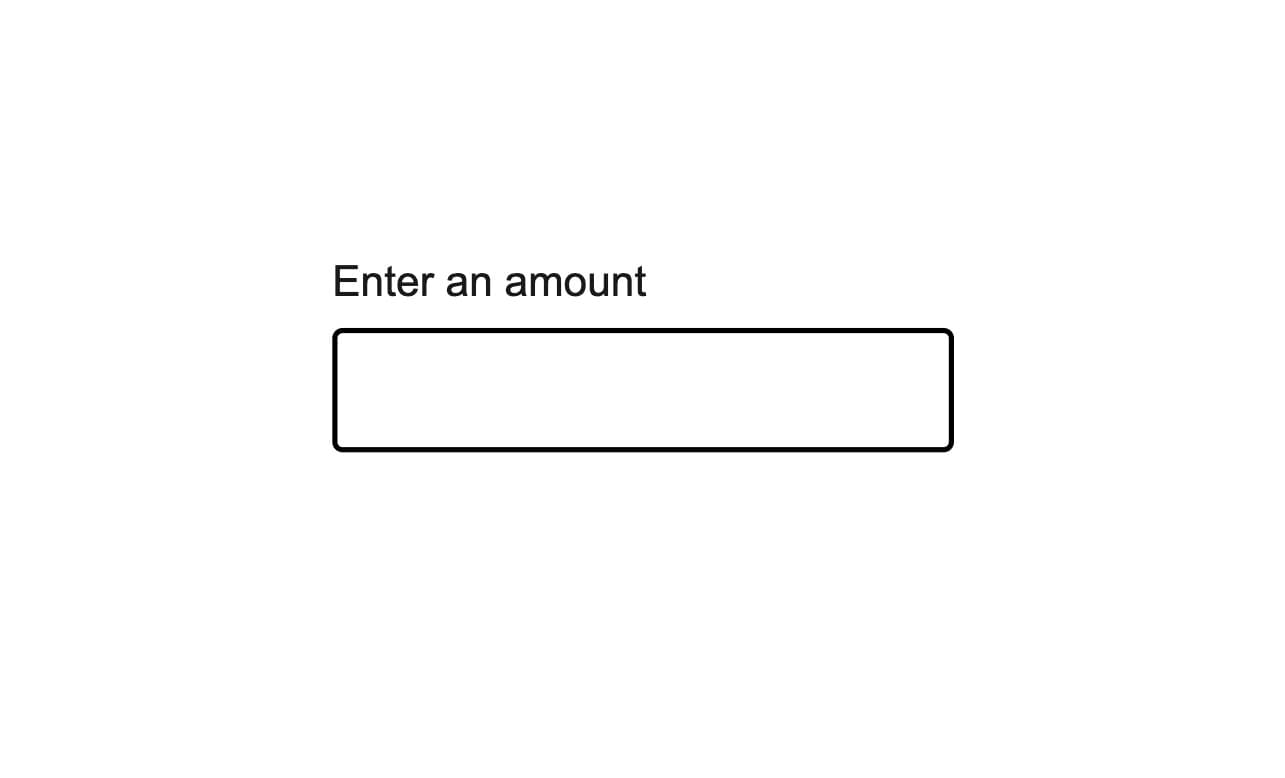

Don't

Don't use unnecessary instructional verbs.

Placeholder

Placeholder text is a short hint displayed inside an input field before a user enters a value. To save space, placeholder text is often used instead of a label, as shown in the first example. This is problematic for the following reasons:

• Placeholder text disappears once a person starts filling in an input field, causing some to forget what the field was for
• Some might miss or skip fields with placeholder text, as it can look like the field has already been pre-filled.
• Placeholder text colour contrast is almost always inaccessible, as it's very light by design. This means many will struggle to read the label.

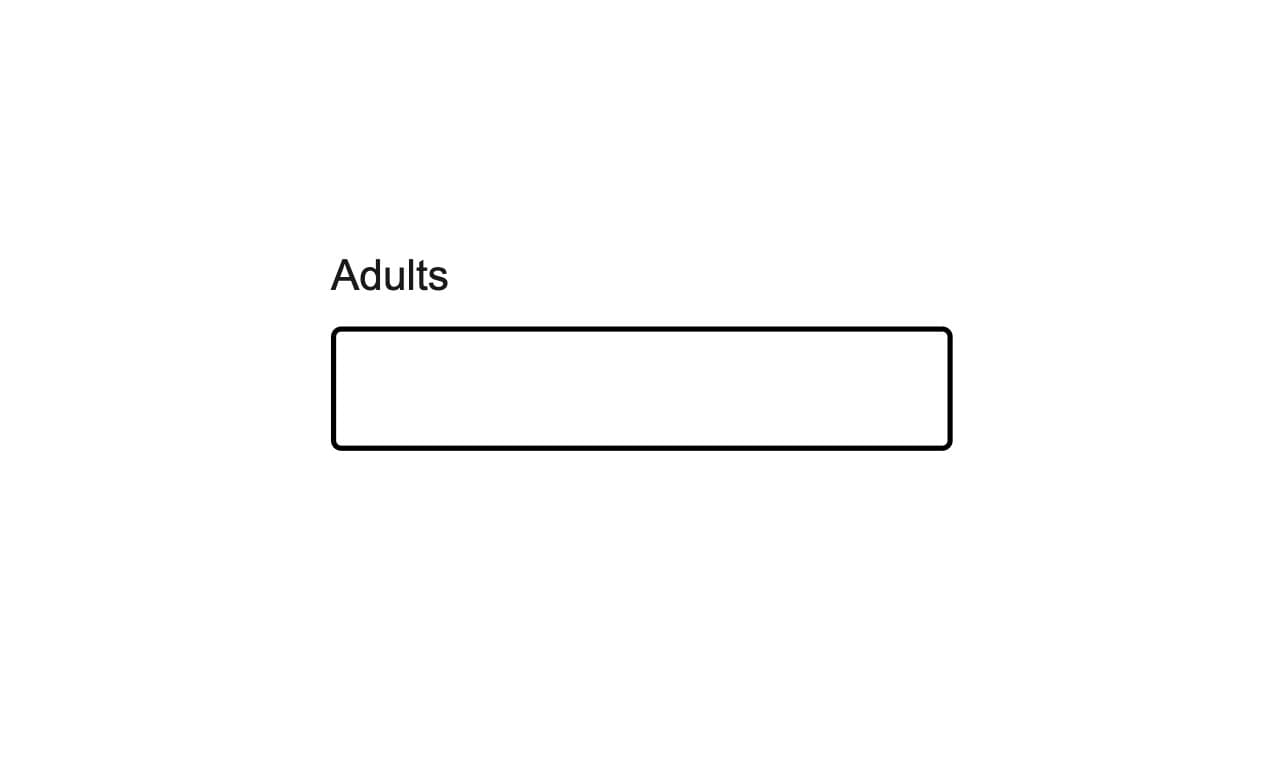

Do

Use label instead of a placeholder.

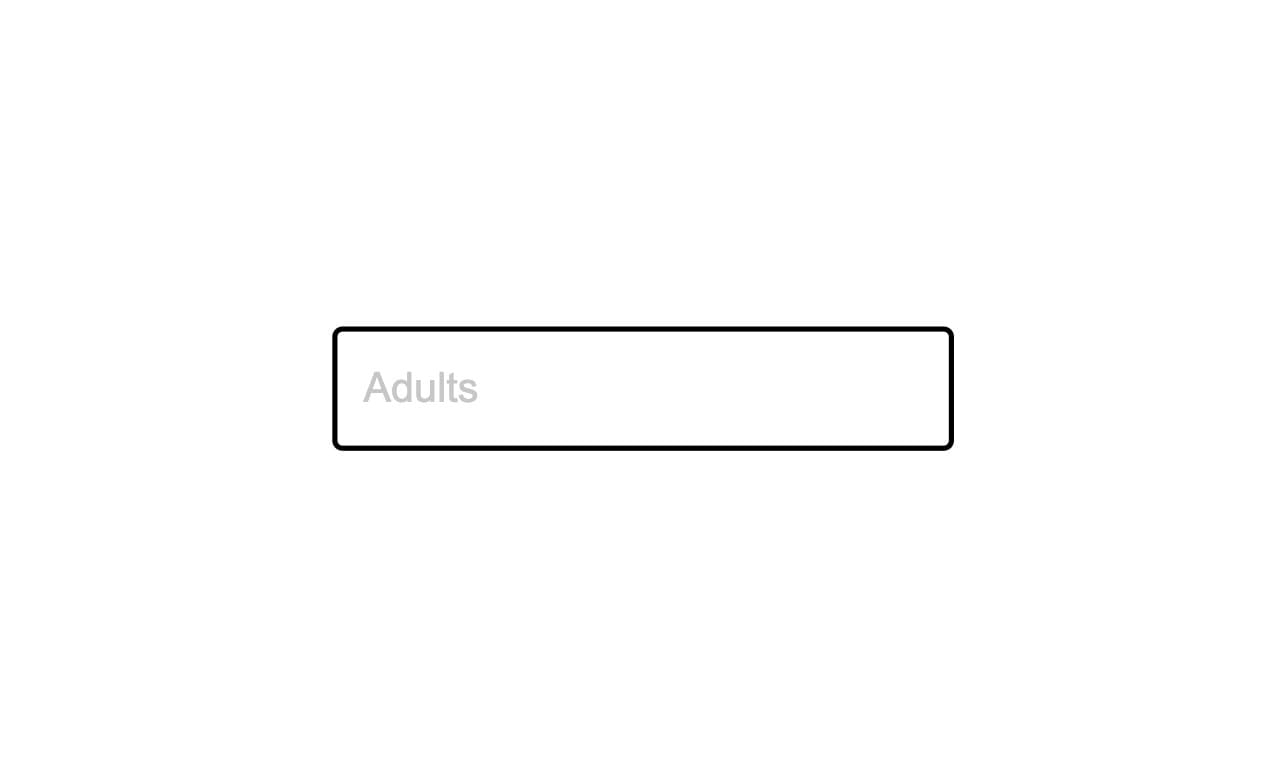

Don't

Don't use placeholder text instead of a label.

Additional Description

Sometimes the label isn't enough for the user. In this case, to gather additional support for the user we can use the help text. With this we can add helpful hints for the user below the input field. Beside that the help text is placed in close proximity to the associated input field.

Do

Use help text to show an example what's expected.

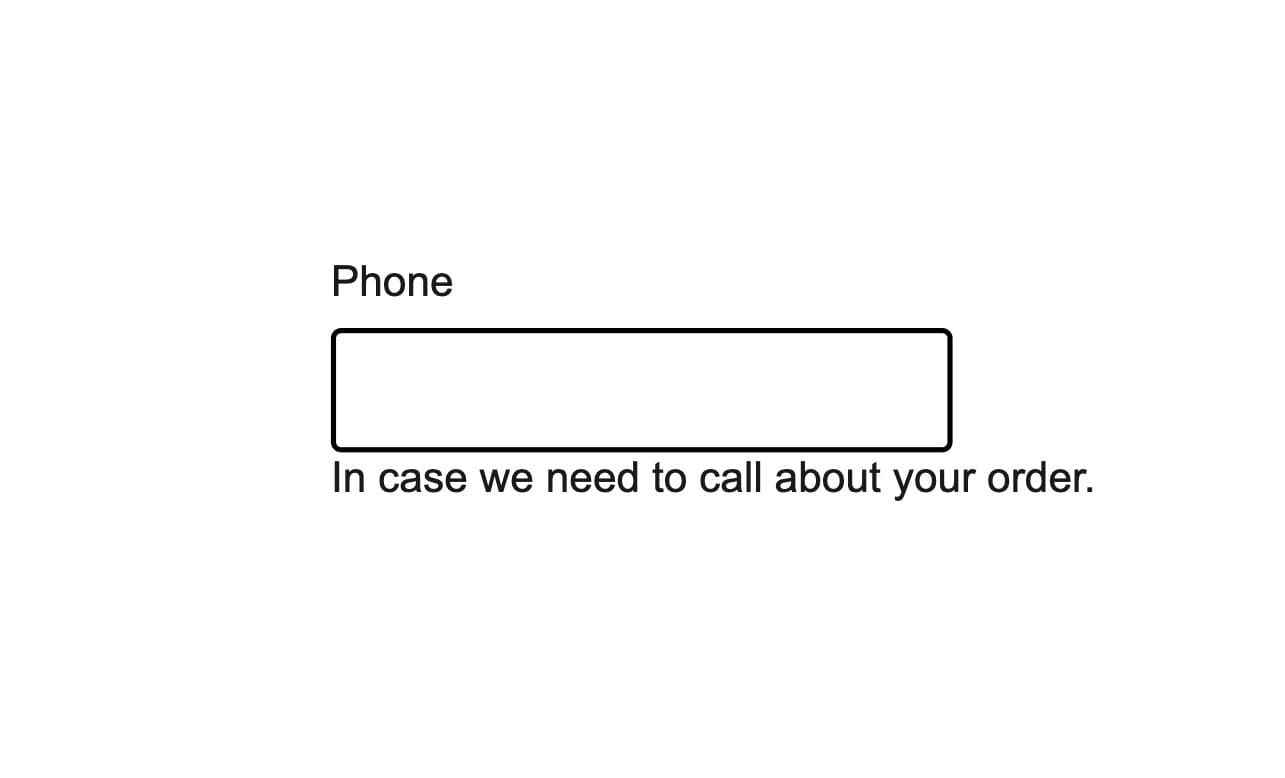

Do

Explain why certain information is needed.

NumberField With An Error

Error messages should let people know that a problem occurred, why it happened, and provide a solution to fix it and move forward.

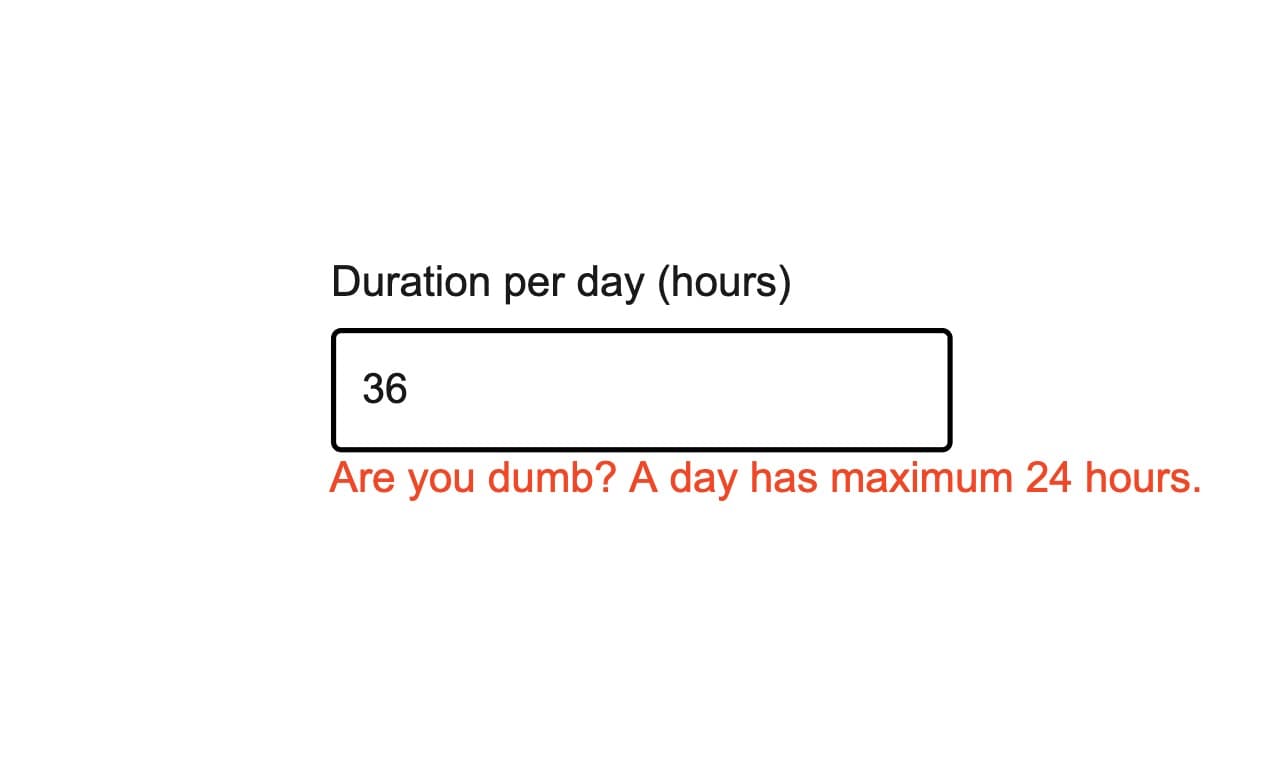

Don't

Never blame the user. Always be positive and helpful.

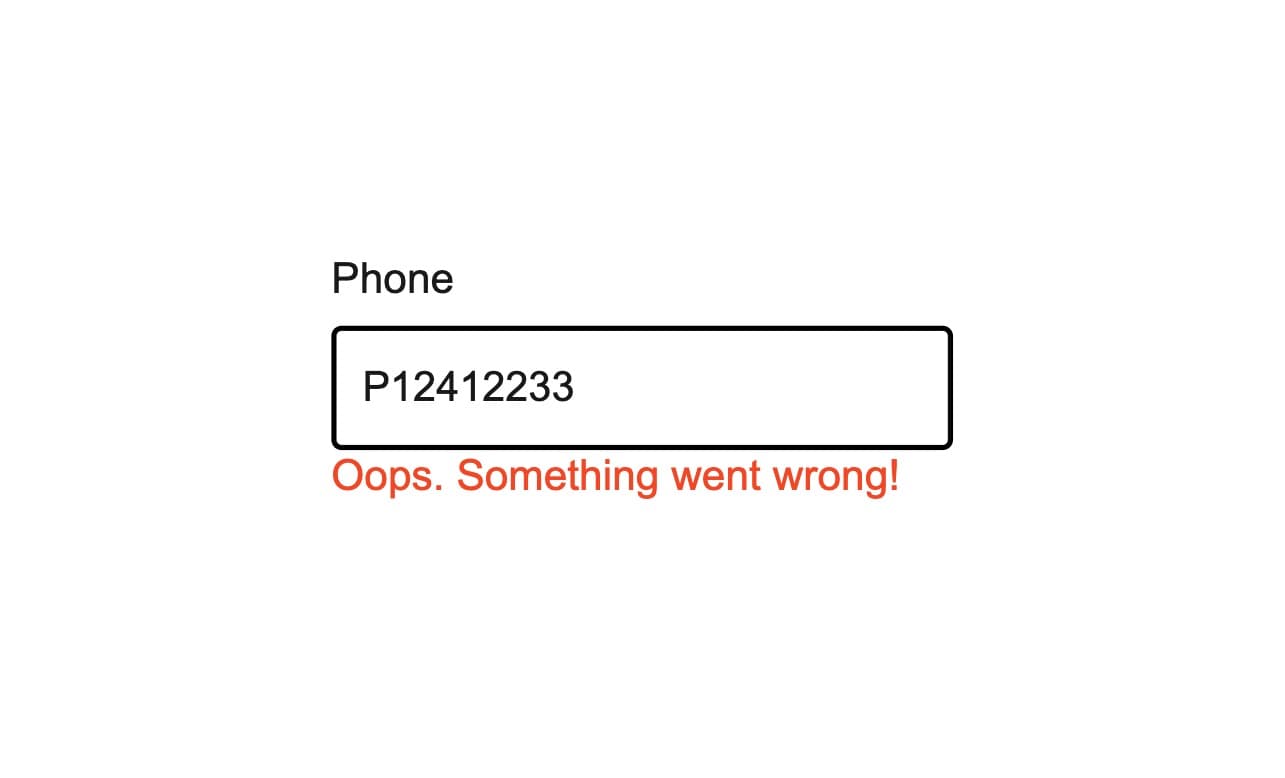

Don't

Be concise and avoid unnecessary words like "please", "sorry" and "oops"

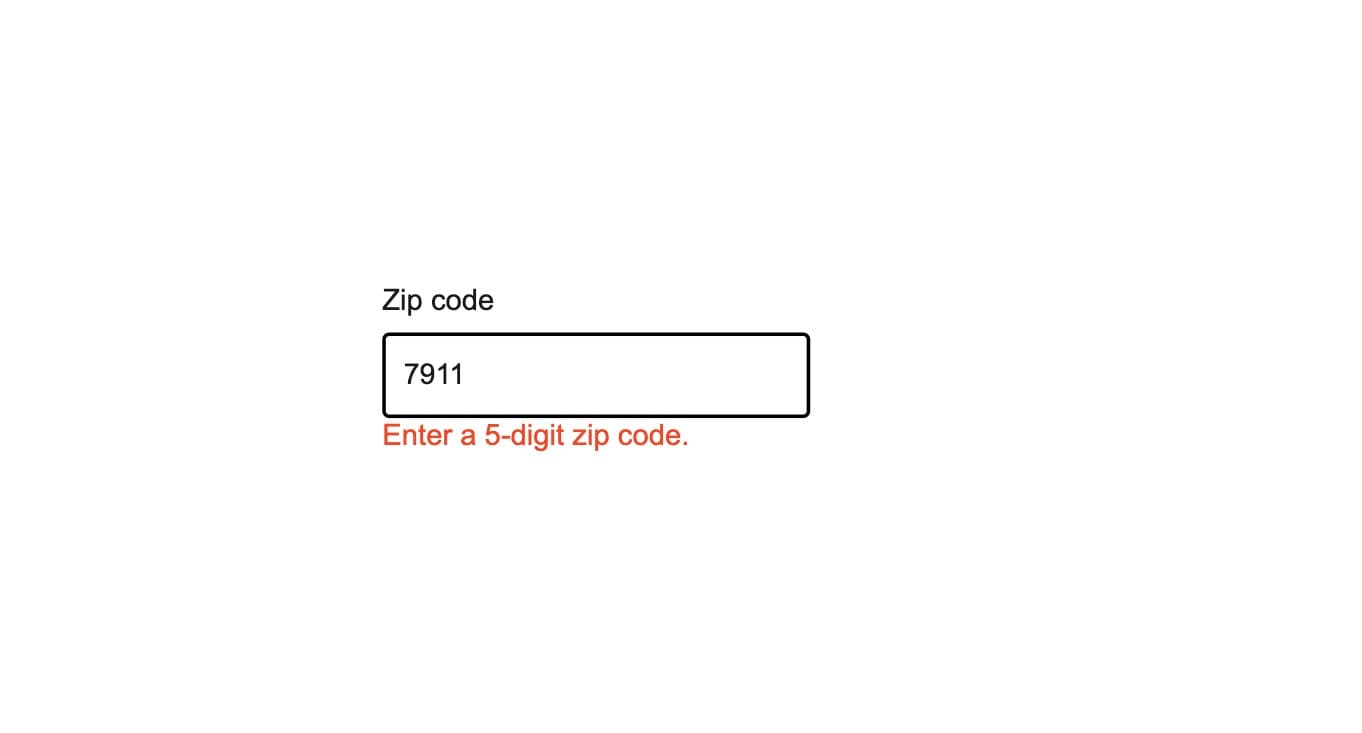

Do

Use detailed messages instead of global messages.

The error prop toggles the error state of a field. The errorMessage prop can then be used to provide feedback to the user about the error. The message disappears automatically when all requirements are met.

import { useState } from 'react';import { NumberField } from '@marigold/components';export default () => {  const [charge, setCharge] = useState<number>(9999);  const errors: string[] = [];  if (charge > 1000) {    errors.push('The charge is not allowed to be more than 1.000 €');  }  return (    <NumberField      label="Charge"      value={charge}      formatOptions={{        style: 'currency',        currency: 'EUR',      }}      minValue={0}      error={errors.length > 0}      errorMessage={errors}      onChange={setCharge}      hideStepper    />  );};
